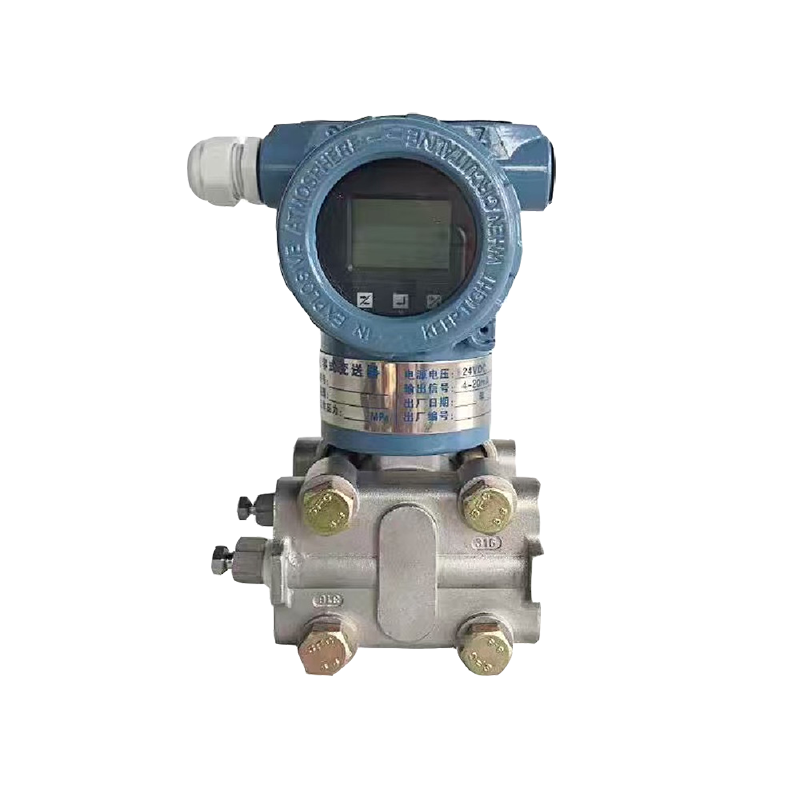

XFYYC3051-DP            智能差壓變送器

準確度等級

C                    0.1%

B                    0.075%

A                    0.05%

測量範圍

0B                  （0~0.6）KPa~6KPa

0C                  （0~2）KPa~40KPa

0E                  （0~2.5）KPa~250KPa

0F                  （0~10）KPa~1MPa

0G                  （0~30）KPa~3MPa

額定工作壓力

P2                   16MPa

P3                   25MPa

P4                   42MPa

變送器輸出

E                    4~20mA/HAR通訊協議

R                    RS485-Modbus通訊協議

接液部分材質         隔離膜片

S                    316L

H                    316L

C                    HC-276

T                    钽

L                    钛

G                   316L鍍金

傳感器填充液

G                    矽油

F                    氟油

S                    食用油

電氣接口選型

L1                   鋁合金殼體，電氣接口M20*1.5

L2                   鋁合金殼體，電氣接口NPT1/2

GI                   不鏽鋼316L殼體，電氣接口M20*1.5

G2                   不鏽鋼316L殼體，電氣接口NPT1/2

管道連接

T0                  1/4”NPT内螺紋

T1                  1/4”NPT-M20*1.5外螺紋-Φ14引壓管（1套）

T2                  1/4”NPT-M20*1.5外螺紋丁型接頭-Φ14引壓管（1套）

T3                  1/4”NPT-1/2”NPT内螺紋腰型接頭

T4                 1/4”NPT-   G1/2”内螺紋腰型接頭

T5                  配一體化三閥通

顯示器

M0                   無顯示

M1                   低功耗液晶顯示屏

M2                   耐低溫液晶顯示屏

安裝支架

W                  無安裝支架

P                   平闆安裝支架

Z                   直角安裝支架

防爆認證

E0                   非防爆

E1                   本安Ex   iaⅡB T6 Ga

E2                   隔爆Ex   dbⅡC T6 Gb
